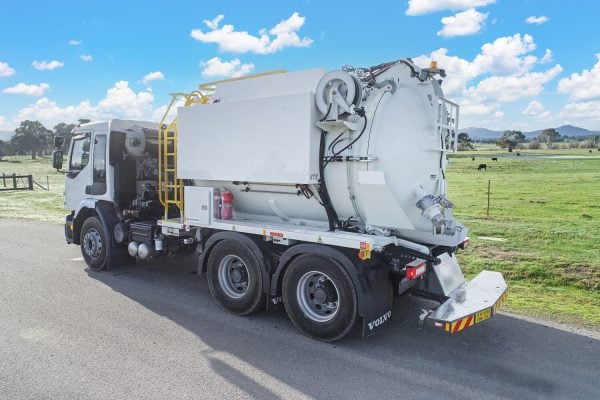

Mudvac

A versatile and modern solution for liquid and mud waste.

Redefining Suction

The Mudvac features a stainless steel VTS tower, liquid ring vacuum system. This provides a high tolerance to carryover as well as a quiet and powerful combination of airflow and vacuum. Capable of handling everything from septic tanks to drill mud and even minor service locating.

Rugged Construction

VTS build specification
provides long term trouble

Simple operation

Minimal training required
for safe and efficient
operation.

Easy to Maintain

More time on the job, less
time in the workshop.

Fit for Purpose

The Mudvac has been thoroughly and continuously refined to ensure that it is perfectly suited to industrial and sludge waste applications. If you deal with car wash waste, drill muds and heavy sludges rest easy in the knowledge that VTS have created the solution for you!

Specs

  • 4x2
  • 6x4
  • 6,000
    4x2
    Isuzu
    Isuzu FVD 300hp 4x2 with auto transmission
    N/A
    8mm Mild Steel
    AS1210 CL3 and AS4343 compliant barrel
    Hydraulic tipping and full rear door
    1,000 m3/h - 600 CFM liquid ring vacuum pump, hydraulically driven
    1,200 litres of fresh water with HP Water Pump
    Vac tested to -101kpa, pressure tested to 100kpa
    Fully rebuildable Molex inlet valve
    Stainless steel separator and manifolding
    Rear airbag suspension
  • 10,000
    6x4
    Volvo
    Volvo FE 350 HP 6x4 with I-Shift
    Volvo Connect app provides vehicle performance and tracking data
    8mm Mild Steel
    AS1210 CL3 and AS4343 compliant barrel
    Hydraulic tipping and full rear door
    1,000 m3/h - 600 CFM liquid ring vacuum pump, hydraulically driven
    1,200 litres of fresh water with HP Water Pump
    Vac tested to -101kpa, pressure tested to 100kpa
    Fully rebuildable Molex inlet valve
    Stainless steel separator and manifolding
    Rear airbag suspension
