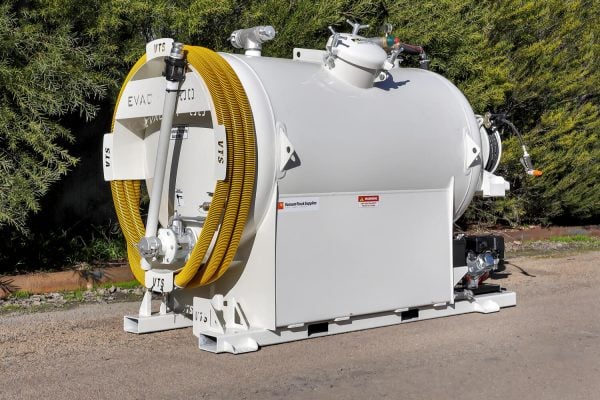

The VTS Evac range provides a portable vacuum solution for a wide range of applications. These units achieve equal vacuum to our full size trucks and trailers, but in a compact and sturdy package.
Compact, steel-framed units with industrial-grade pumps, valves and hose gear. Built to handle vibration, transport and daily use—on a ute, trailer, or site skid.

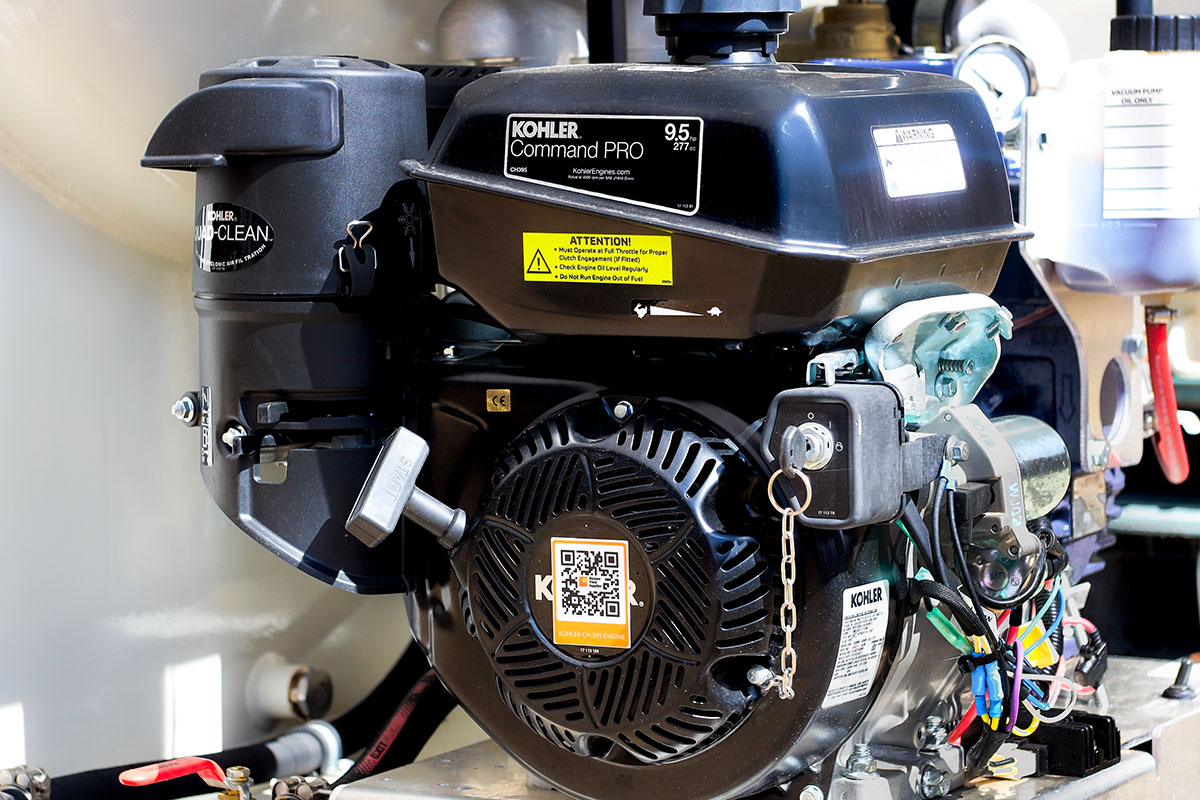

Easy Maintenance
Accessible filters, traps and seals make routine checks simple. Straightforward componentry means quick parts swaps and minimal downtime in the field.

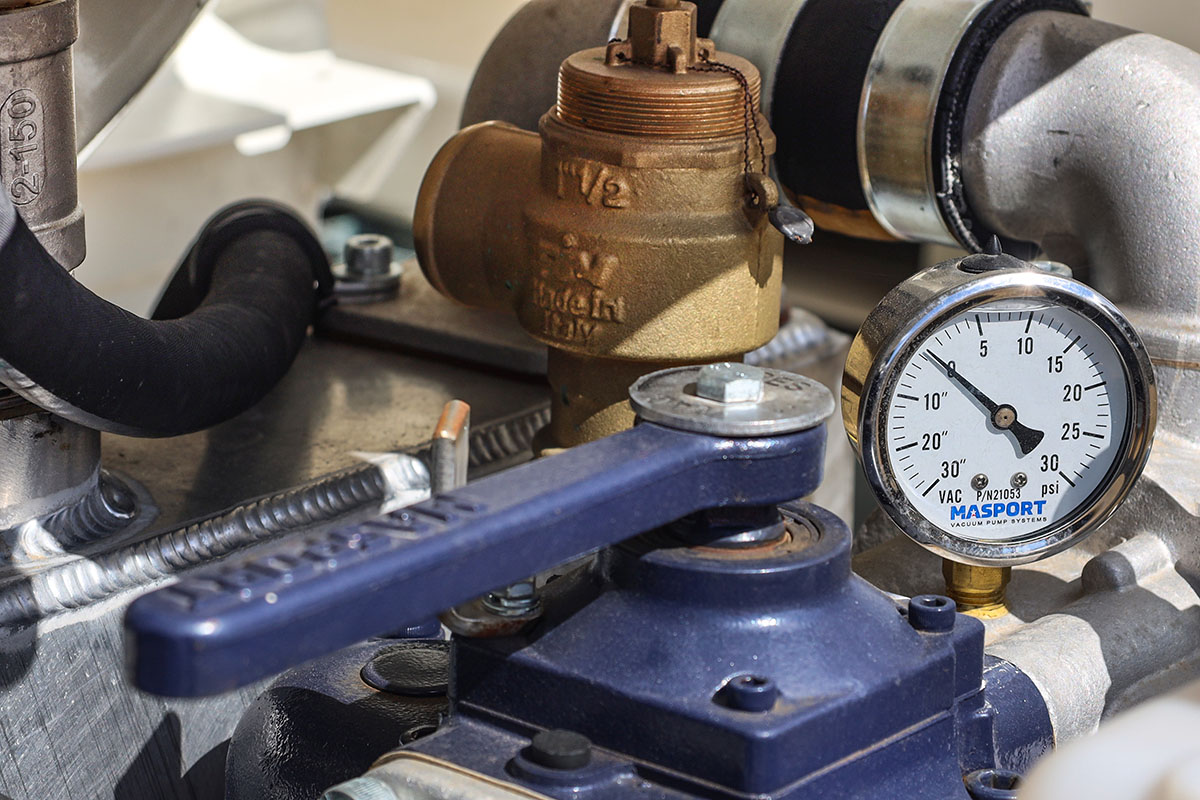

Simple operation
Designed for plug-and-play use: intuitive controls, clear valve logic, and fast start-up. Backed by online training video support for safe, confident operation from day one.

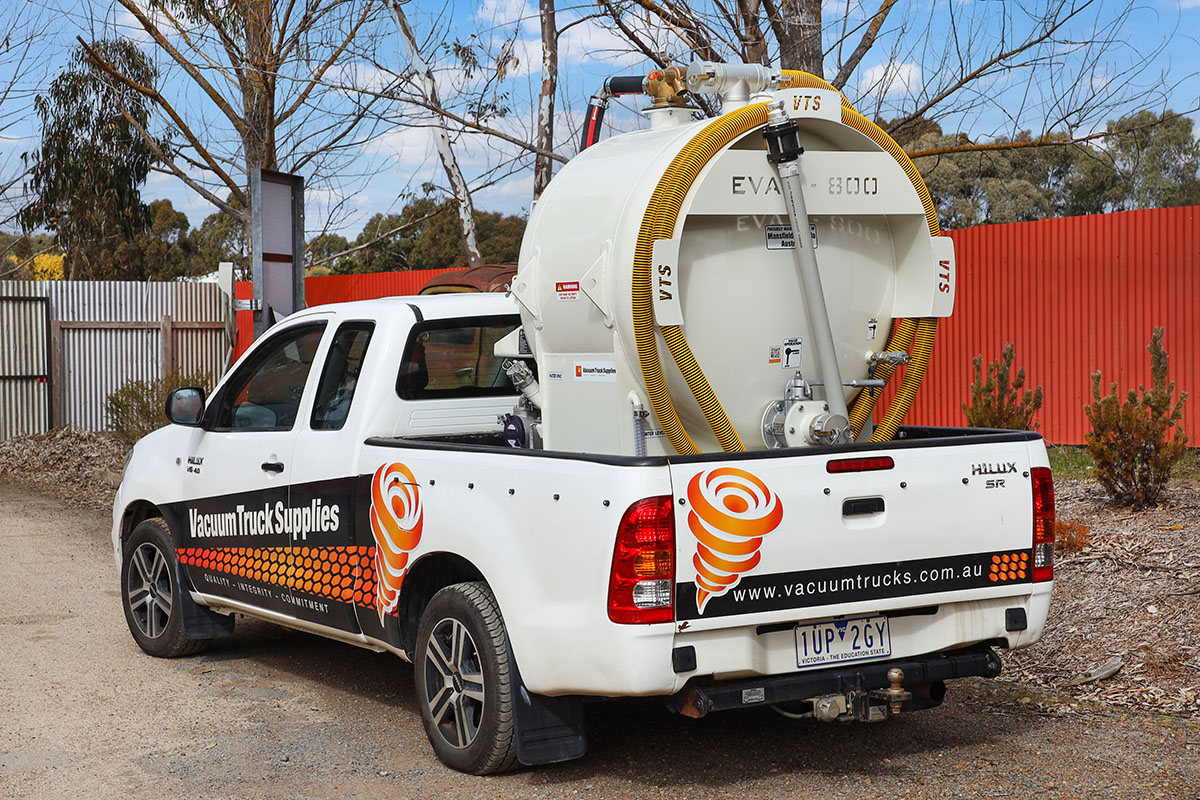

Fit for Purpose
Purpose-built for tight access, emergency call-outs, and smaller jobs where agility matters. Mount it to a ute or suitable trailer and you’re on site, working—fast.
Specs
800
1,600
3,200
800
120 m3/h - 70 CFM vacuum pump
300 litres of fresh water with Honda low pressure pump
5mm stainless steel
AS1210 CL3 and AS4343 compliant barrel, Work Safe plant approved
Vac tested to -101kpa, pressure tested to 100kpa
Honda petrol drive motor
Fully self contained vacuum and fresh water system
1,600
195 m3/h - 115 CFM vacuum pump
600 litres of fresh water with Honda low pressure pump
5mm stainless steel
AS1210 CL3 and AS4343 compliant barrel, Work Safe plant approved
Vac tested to -101kpa, pressure tested to 100kpa
Honda petrol drive motor
Fully self contained vacuum and fresh water system
3,200
195 m3/h - 115 CFM vacuum pump
1,200 litres of fresh water with Honda low pressure pump
5mm stainless steel
AS1210 CL3 and AS4343 compliant barrel, Work Safe plant approved
Vac tested to -101kpa, pressure tested to 100kpa
Honda petrol drive motor
Fully self contained vacuum and fresh water system
