DrainVac

The combined solution for drain cleaning and hydro excavation.

Clean and dig with the one truck.

The DrainVac combines drain cleaning and hydro excavation, giving you total flexibility in the jobs you can perform. It has stainless steel waste and water tanks, tipping, and full opening doors, and our mechanically engineered hydraulic control systems. This unit is easy to operate, and maintain, meaning more time on the job.
Enquire Now
Download Brochure

Proven Performance

The VTS DrainVac product is new to the Australian market however Aryan, the manufacturer have built over 500 such vacuum trucks over the last 10 years and these vacuum trucks are in use in some of the harshest environments around the world. Designed and specified by VTS, this new range incorporates all the same proven standards of our full range of vacuum trucks and trailers, and are fit for purpose for Australia’s unique conditions. Coupled with VTS’s simple computer free control system and you have a very robust range ready to go straight to work without costing you the earth. These vacuum trucks are built to be abused!

Rugged Construction

VTS build specification
provides long term trouble free operations.

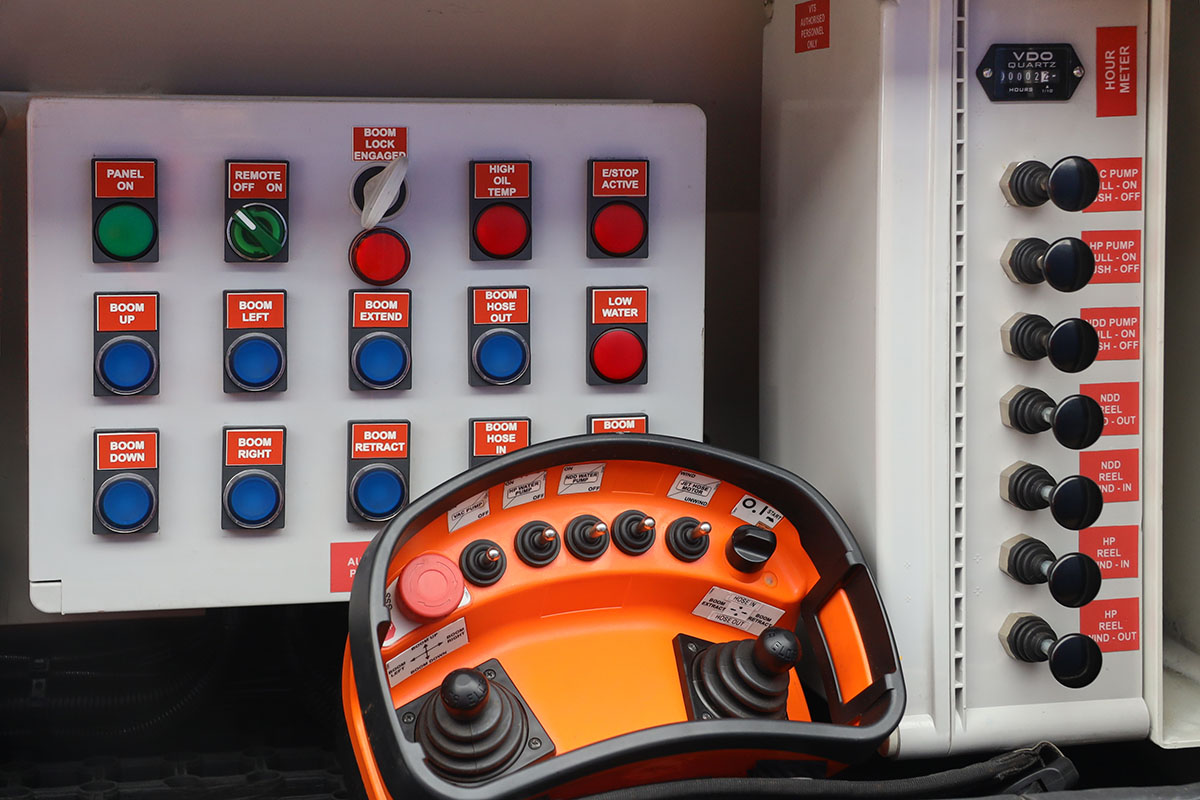

Simple operation

Minimal training required
for safe and efficient
operation.

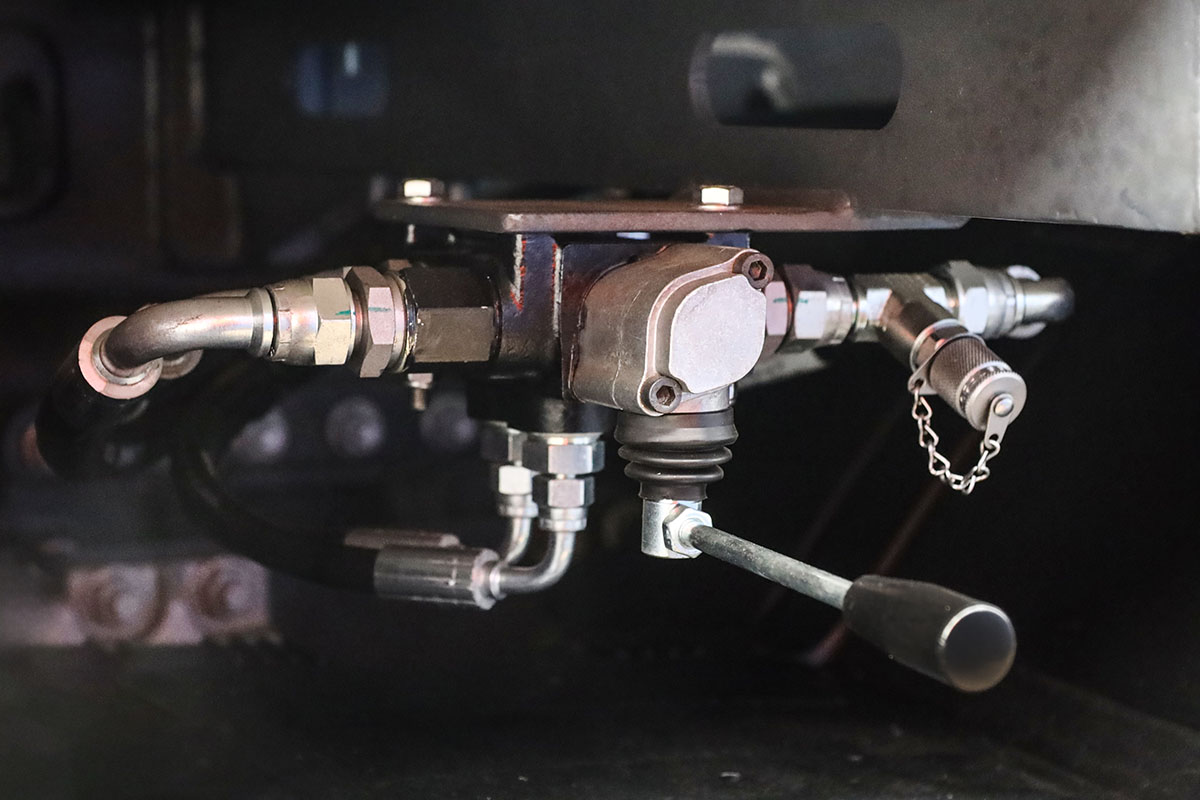

Easy to Maintain

More time on the job, less
time in the workshop.

Fit for Purpose

The DrainVac combines drain cleaning with hydro excavation giving you flexibility in the jobs you can perform with the one unit, giving you more time on the job!

Specs

  • 6x4
  • 8x4
  • 7,000L Sludge - 3,500L Water
    6x4
    Volvo FE 350HP 6x4 with I-Shift
    3,050 m3/h - 1,800 CFM CVS liquid ring vacuum pump, hydraulically driven
    Fully hydraulic 150mm suction boom
    Pratissoli Drain cleaning pump 270lpm/155bar, 25mm 180m hydraulic drive hose reel.
    5mm 304 stainless steel

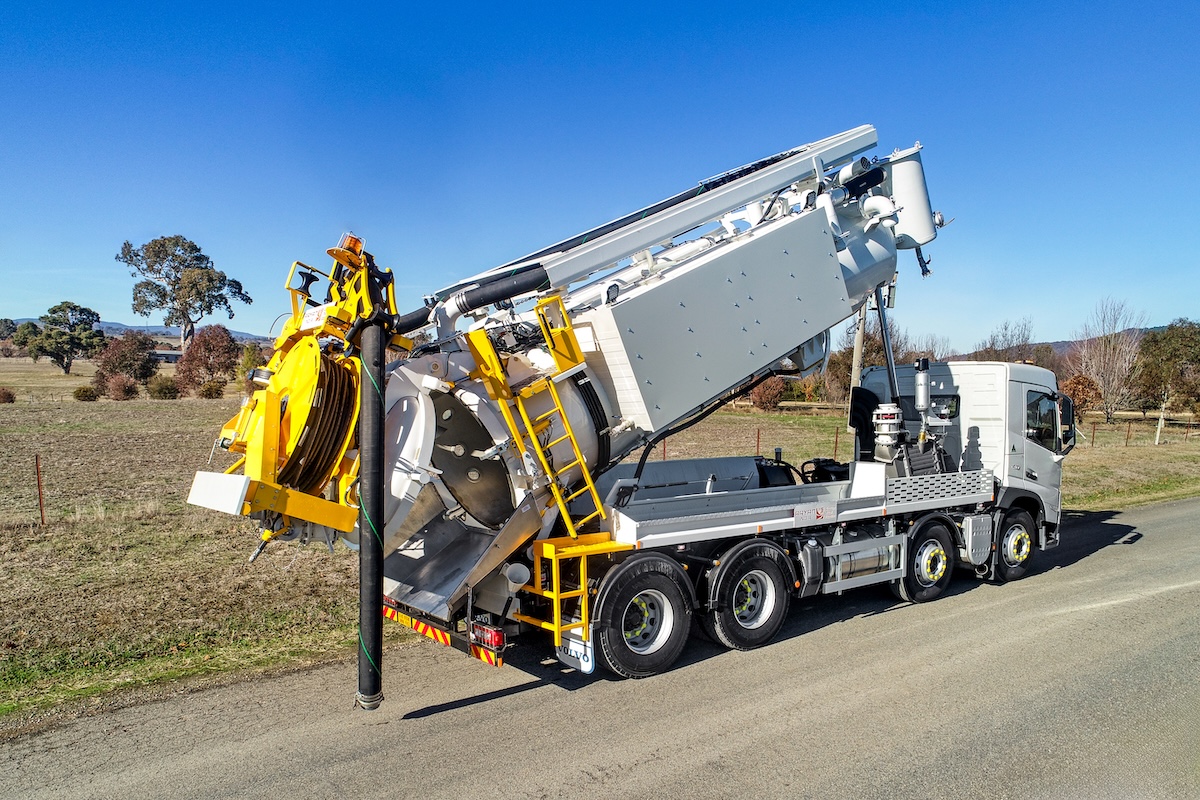

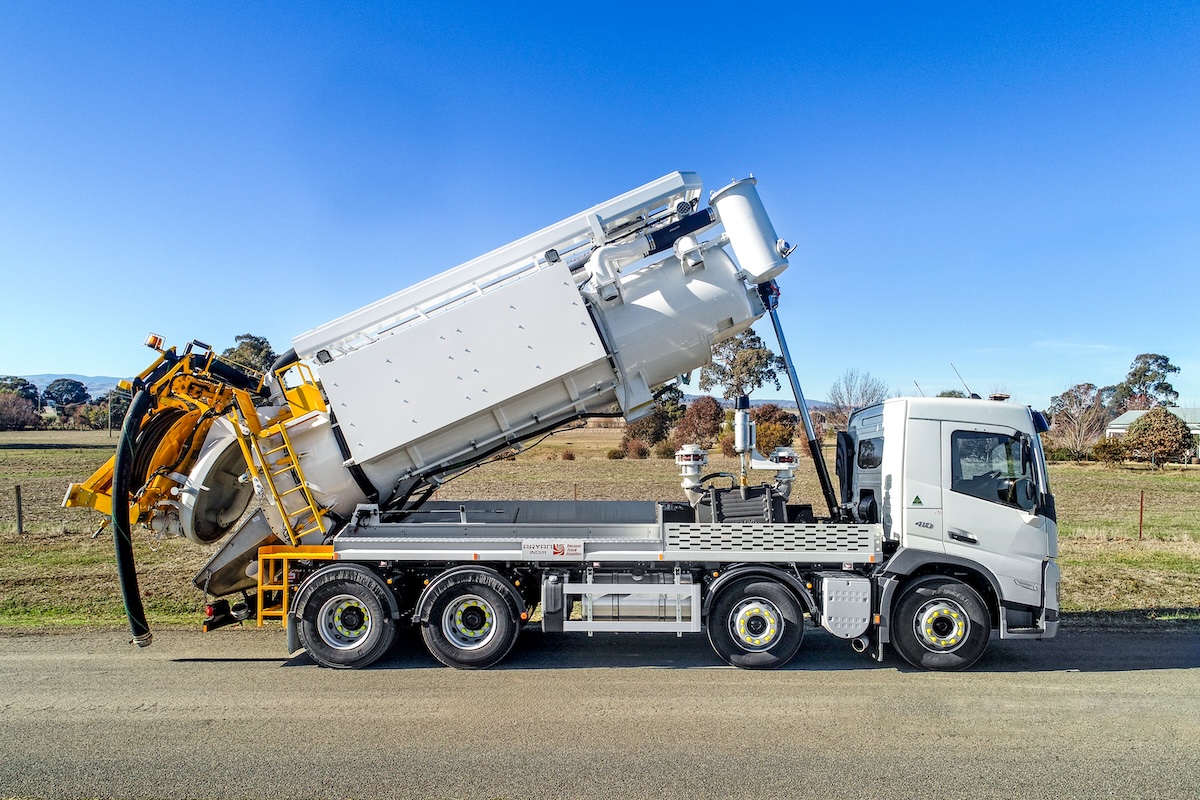

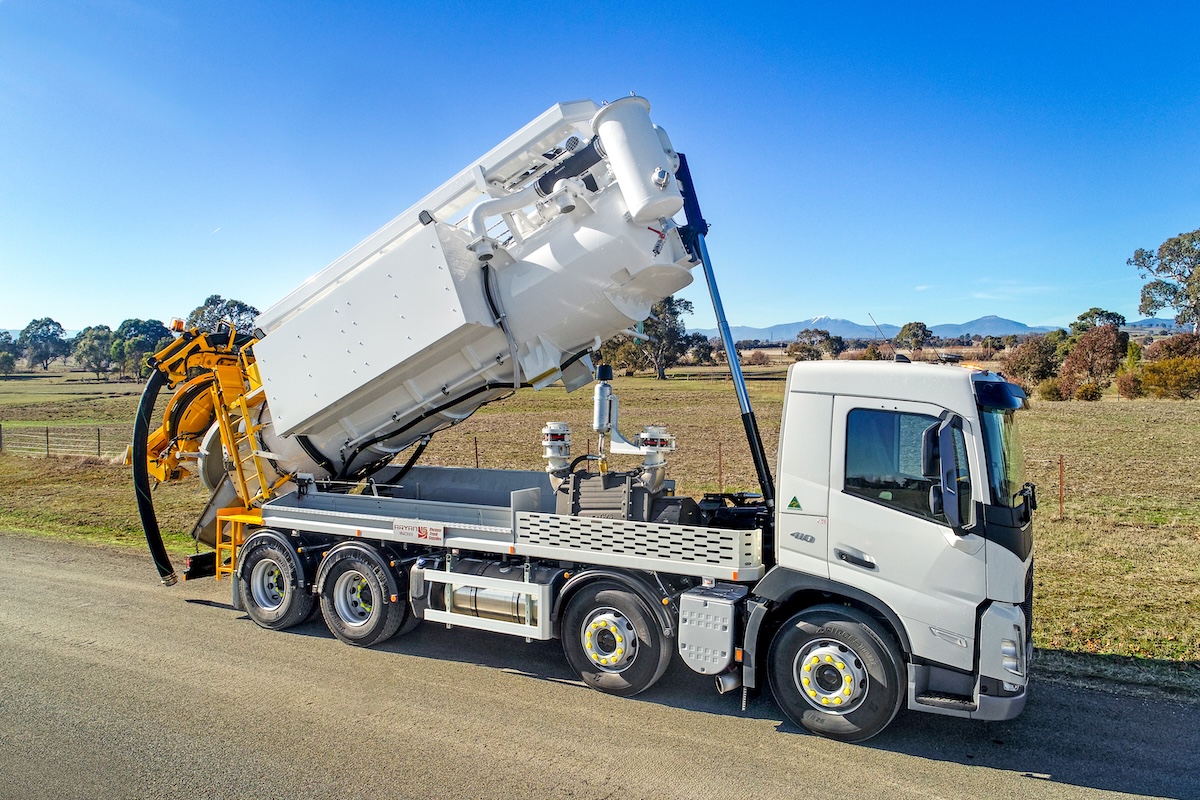

    Hydraulic Tipping and Fully Hydraulic Rear Door
    UDOR NDD Pump 17LPM/300BAR, 12mm 100m hydraulic hose reel
    Stainless steel separator and manifolding
    Molex fully rebuildable ball valves
    Wireless remote control with manual control backup. Simplified control system: no computers, no worries!
  • 8,000 Sludge – 4,000L Water

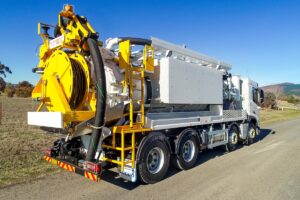

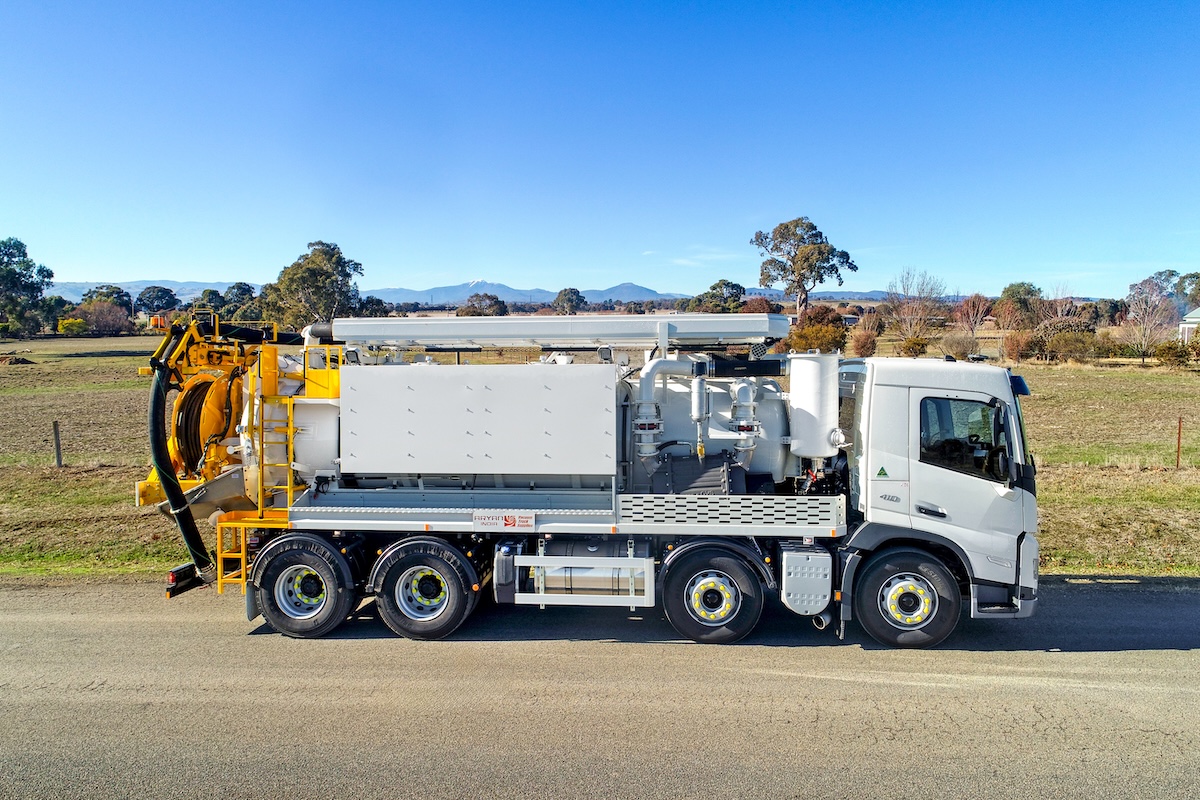

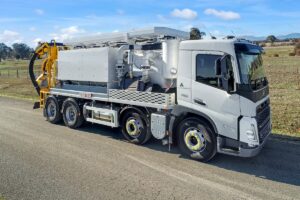

    8x4
    Volvo FM 450HP 8x4
    4,000 m3/h - 2,350 CFM CVS liquid ring vacuum pump, hydraulically driven

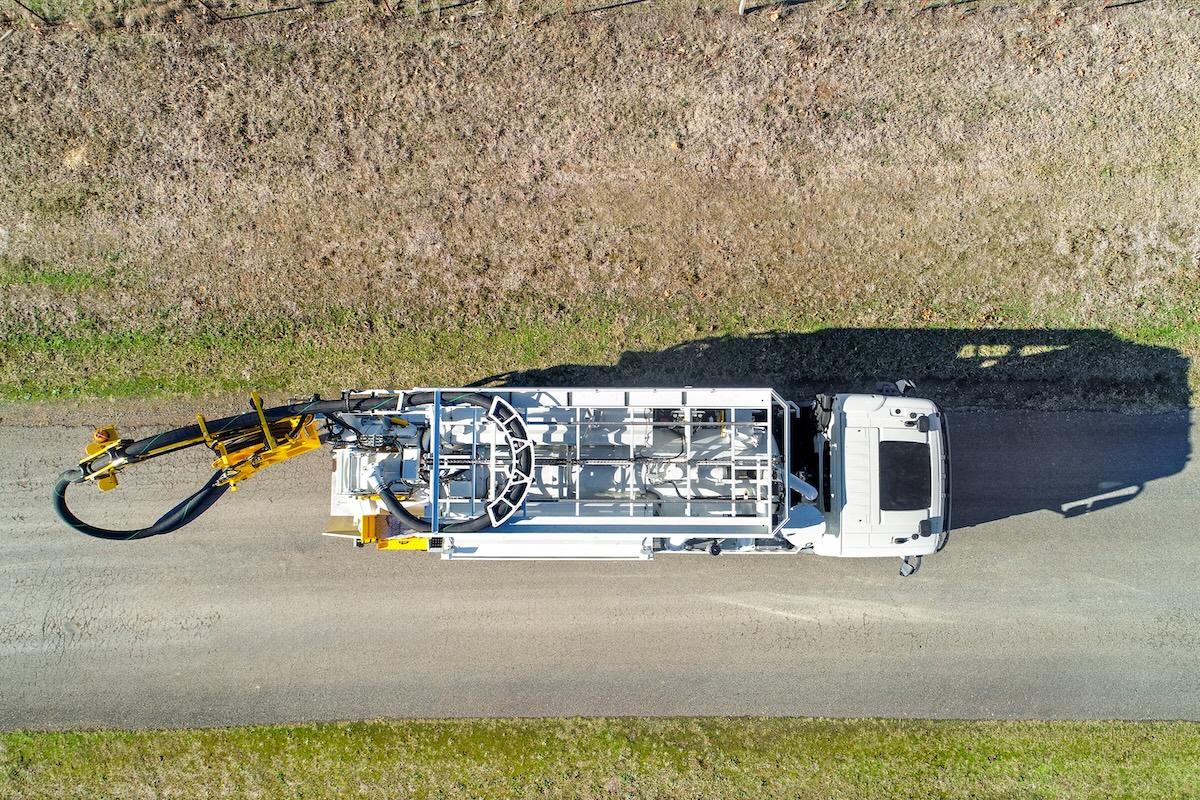

    Fully hydraulic 150mm cassette style boom, 20m length.
    Pratissoli Drain cleaning pump 346lpm/170bar, 25mm 180m hydraulic drive hose reel.
    5mm 304 stainless steel
    Hydraulic Tipping and Fully Hydraulic Rear Door
    UDOR NDD Pump 17LPM/300BAR, 12mm 100m hydraulic hose reel
    Stainless steel separator and manifolding
    Molex fully rebuildable ball valves
    Wireless remote control with manual control backup. Simplified control system: no computers, no worries!

Knowledge Hub

We know how hard it is to find reliable information in the liquid waste industry! Check out our knowledge hub to keep you and your business on the cutting edge.

Product Updates, Trouble Shooting

Why can’t I do NDD with my Vacuum Truck?

Trouble Shooting

Rod’s view on the ground rules of trouble shooting

Industry Insights, Trouble Shooting

Rod’s view on important documents you need in your business

Whenever there is a need, we have a solution

What about custom?

Of course we are also capable of a diverse range of custom builds. If you have a need not addressed by our standardised range, please get in touch to discuss the details of your build.
